Pneumatic High Pressure Two Way Butt Welding Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | FABIA Pneumatic High Pressure Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation | Pneumatic |
| Actuator | Two Way | Connection Type | Butt Weld |
| Seal Material | PTFE, PEEK | Flow Characteristic | Linear, Equal Percentage |
| Size | 1/2-8 Inch | Pressure Rating | 1000-6000 PSI |
| Certificate | ISO 9001, CE, API | Temperature Range | -20°C To +200°C |
| Design Standard | API 6D, API 608, ANSI B16.34 | End Connection | NPT, BSPT, BSPP, DIN259/2999 |
Product Description

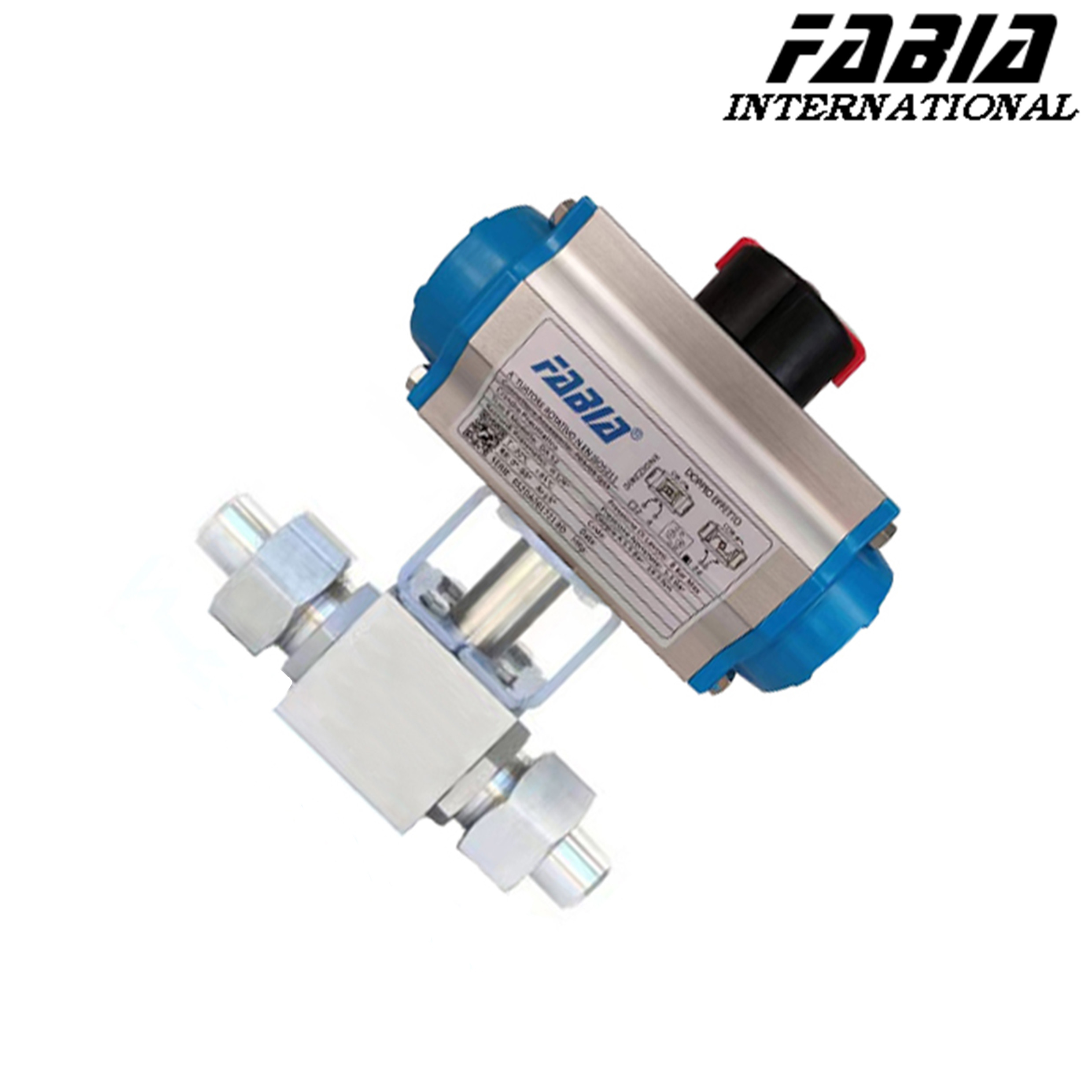

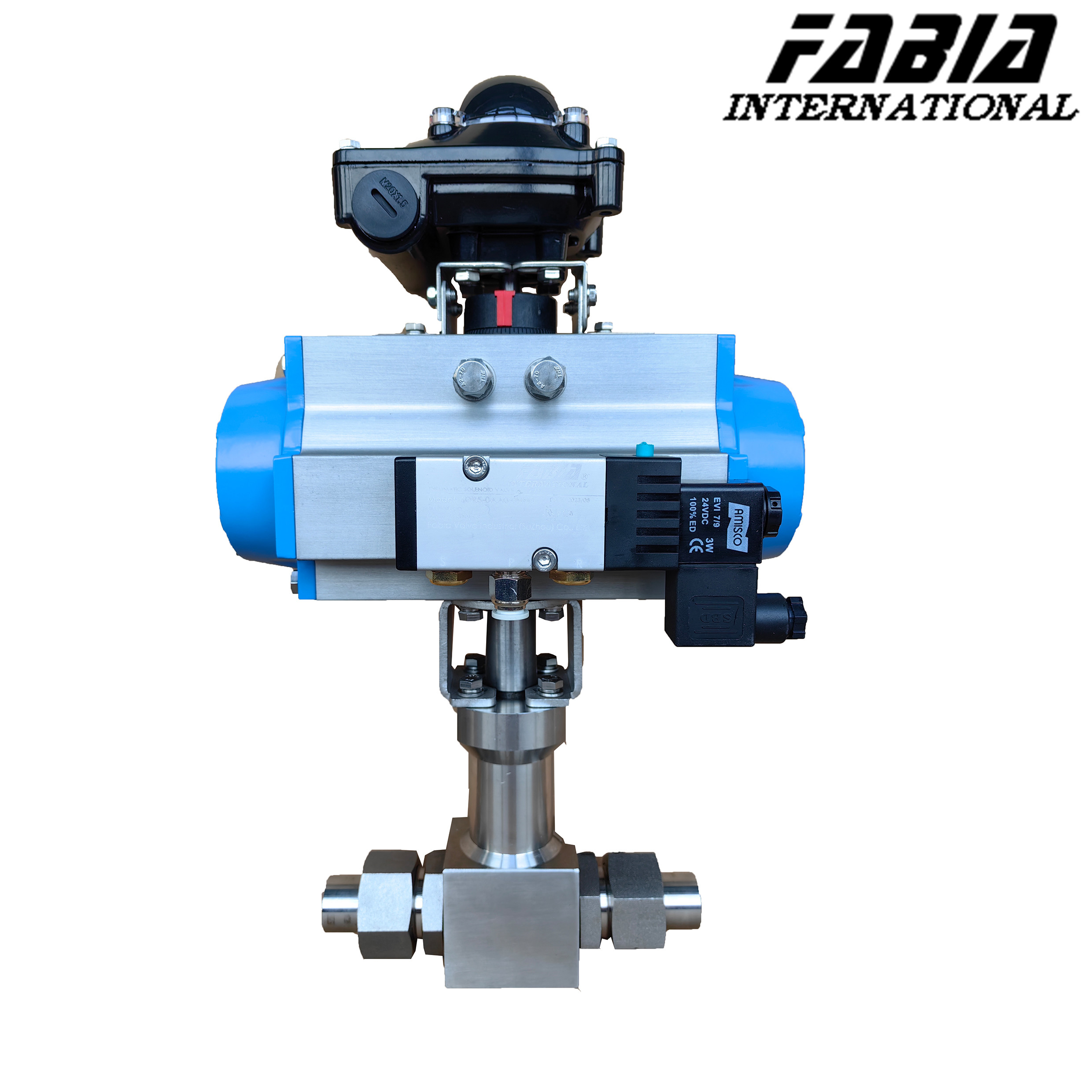

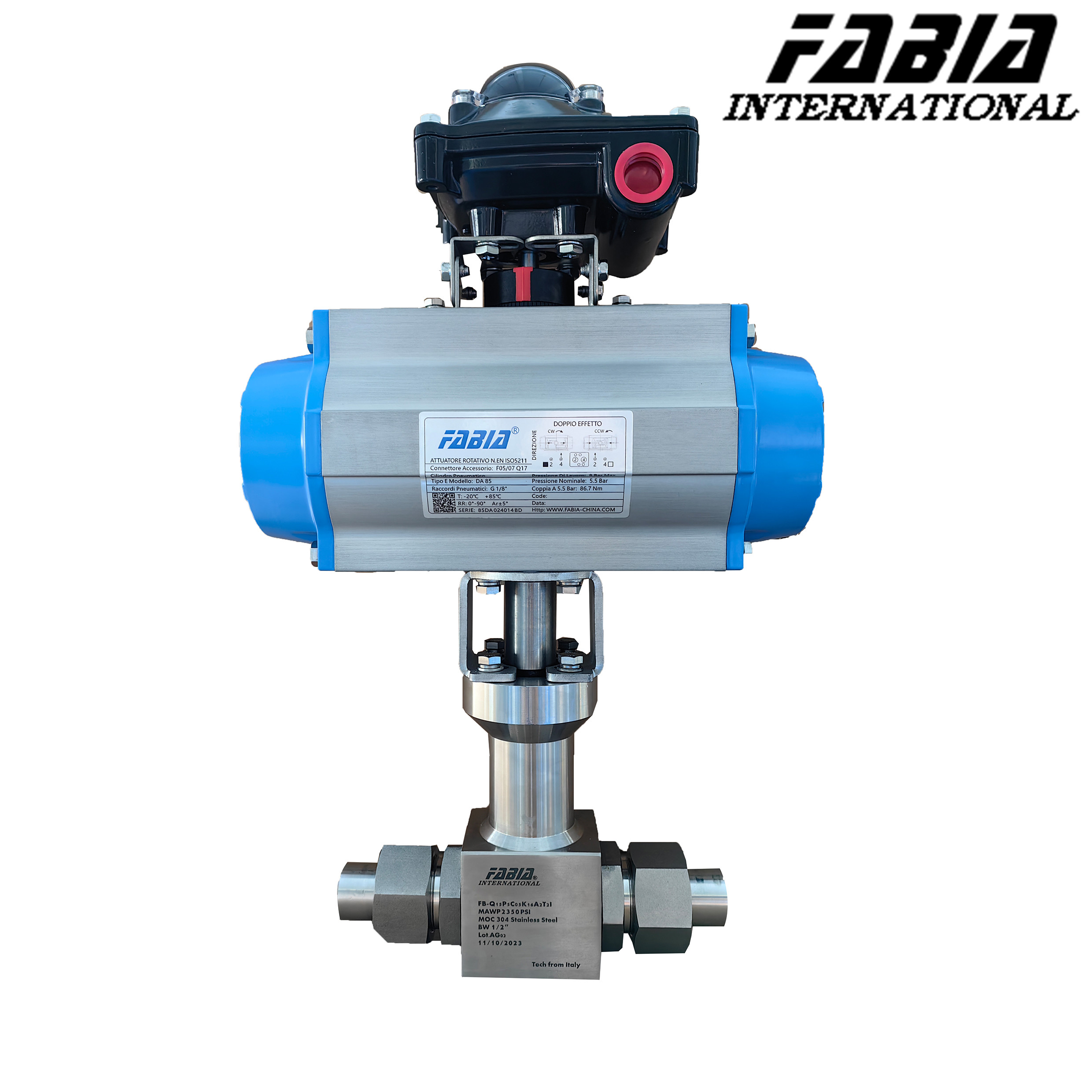

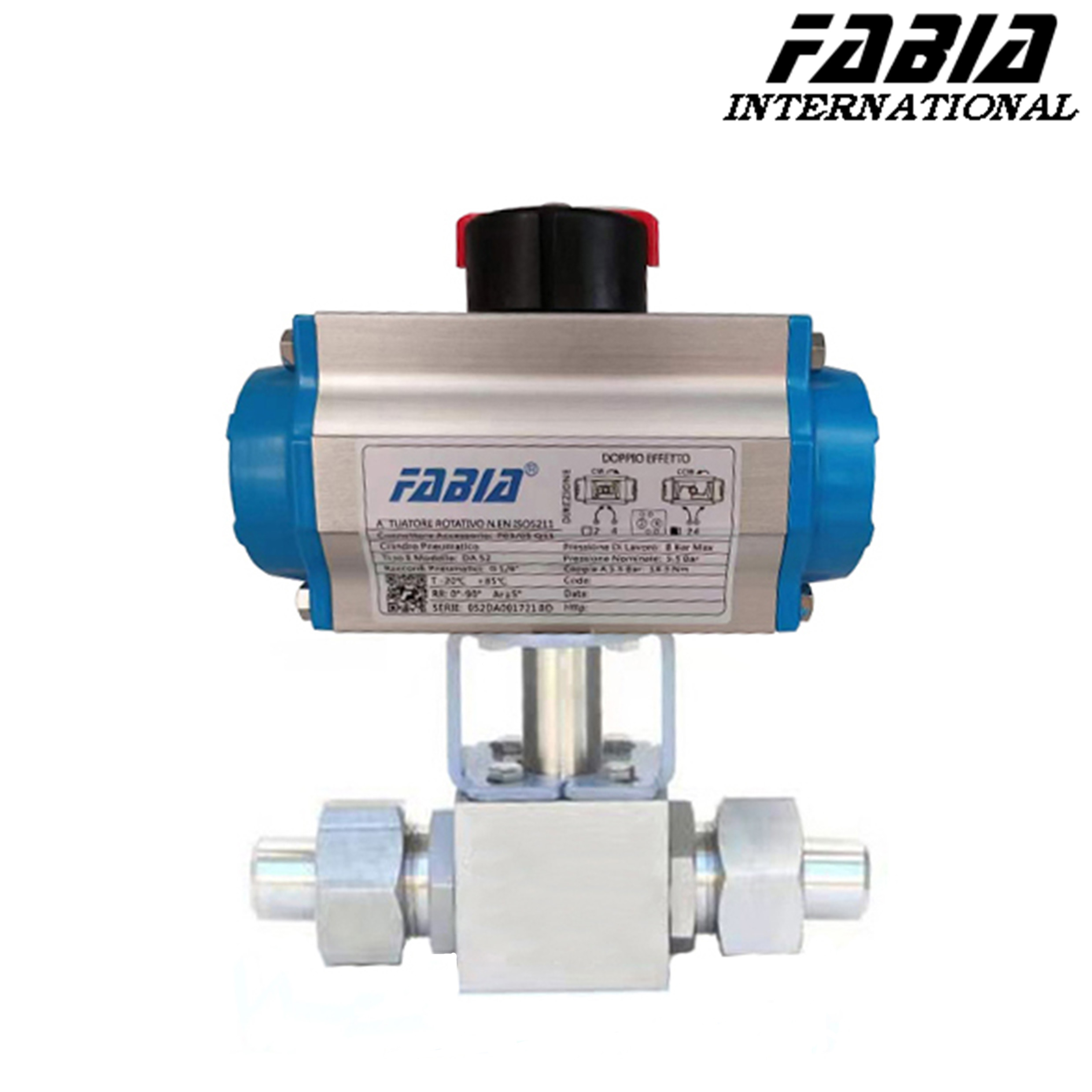

FABIA Pneumatic High Pressure Two Way Butt Welding Ball Valve
1. Description:
Pneumatic butt welding ball valve is widely used, mainly used in petrochemical, chemical, pharmaceutical, metallurgy and other industries of high temperature, high pressure pipeline media cut off and flow regulation.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Pneumatic High Pressure Two Way Butt Welding Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- Butt welding connection method, easy installation, no need for pipe support.
- Valve seal performance is good, zero leakage.
- Use pneumatic actuator control, simple and convenient operation.
- Can be applied to the pipeline system under high temperature, high pressure and other harsh working conditions.
- Good corrosion resistance and can be used for a variety of strong corrosive media.
- Compact structure, small size, occupy a small space, suitable for some narrow space.
