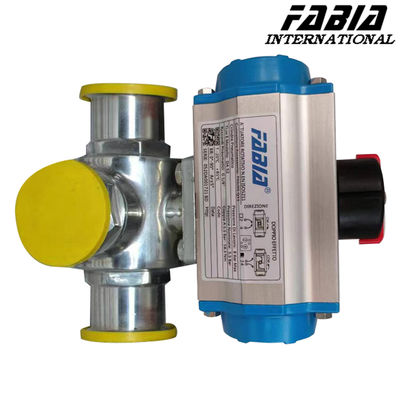

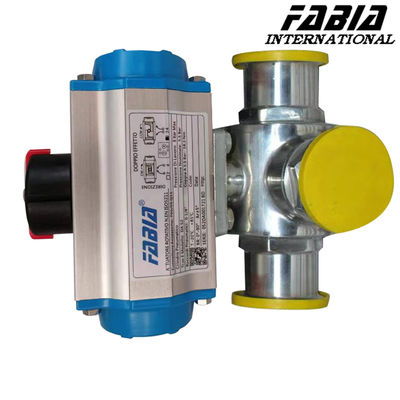

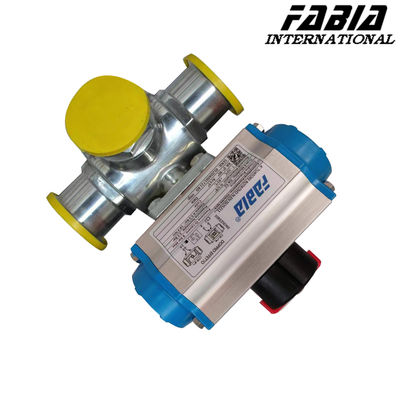

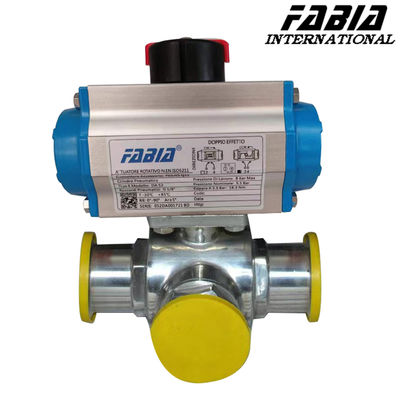

Stainless Steel Quick Three Way Pneumatic Valve /T Type

  • Stainless Steel Quick Three Way Pneumatic Valve /T Type
  • Stainless Steel Quick Three Way Pneumatic Valve /T Type
  • Stainless Steel Quick Three Way Pneumatic Valve /T Type
  • Stainless Steel Quick Three Way Pneumatic Valve /T Type
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Three Way Ball Valve/T Type Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Actuation Pneumatic
Valve Connection Type Threaded Valve Sealing EPDM
Valve Operation Pneumatic Valve Pressure Rating 1000 PSI
Valve Size 1/2-8 Inch Valve Temperature Rating 200°F
Leave a Message
Product Description

Stainless Steel Quick Three Way Pneumatic Valve /T Type



1. Description:



Pneumatic high-pressure T-type ball valve, pneumatic three-way ball valve is the use of compressed air driven ball valve, its simple structure, small size, light weight. It has the advantages of quick switching, quick opening of 90° rotation, good sealing performance and so on.



Widely used in oil and natural gas pipelines as a cut-off or regulating medium, and in oil refineries as an overpressure cut-off on heating furnace systems. Pneumatic high-pressure T-type three-way ball valve is a straight-through control valve driven by compressed air.



2. Specification:



FABIA Valve Parameter List
Valve type: Stainless Steel Quick Three Way Pneumatic Valve /T Type
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Due to the use of double-acting single-seat adjustment mechanism and multi-stage spring return mechanism and other advanced structures have good self-locking and safety. Due to the use of multistage elastic film composed of anti-friction and wear-resistant materials made of guide rails make this product longer service life and more flexible and reliable operation.
  • Use of full welding process manufacturing makes the quality of the product is guaranteed.
  • Use of imported bearings to ensure that the product at high temperature long-term work without deformation and damage.
  •







Stainless Steel Quick Three Way Pneumatic Valve /T Type 0

Stainless Steel Quick Three Way Pneumatic Valve /T Type 1
