Metal High Pressure Electric Ball Valve Two Way Flange Ball Valve
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Electric High Pressure Flange Ball Valve | Valve Type | High Pressure Ball Valve |
|---|---|---|---|
| Material | Stainless Steel | Operation | Electric |
| Connection Type | Flanged | Seat | PTFE, PEEK |
| Size | 1/2-8 Inch | Pressure Rating | 1000-3000 PSI |
| Temperature Range | -20 To 120℃ | ||
| High Light | high pressure electric ball valve,high pressure metal ball valve,metal high pressure electric ball valve |
||
Product Description

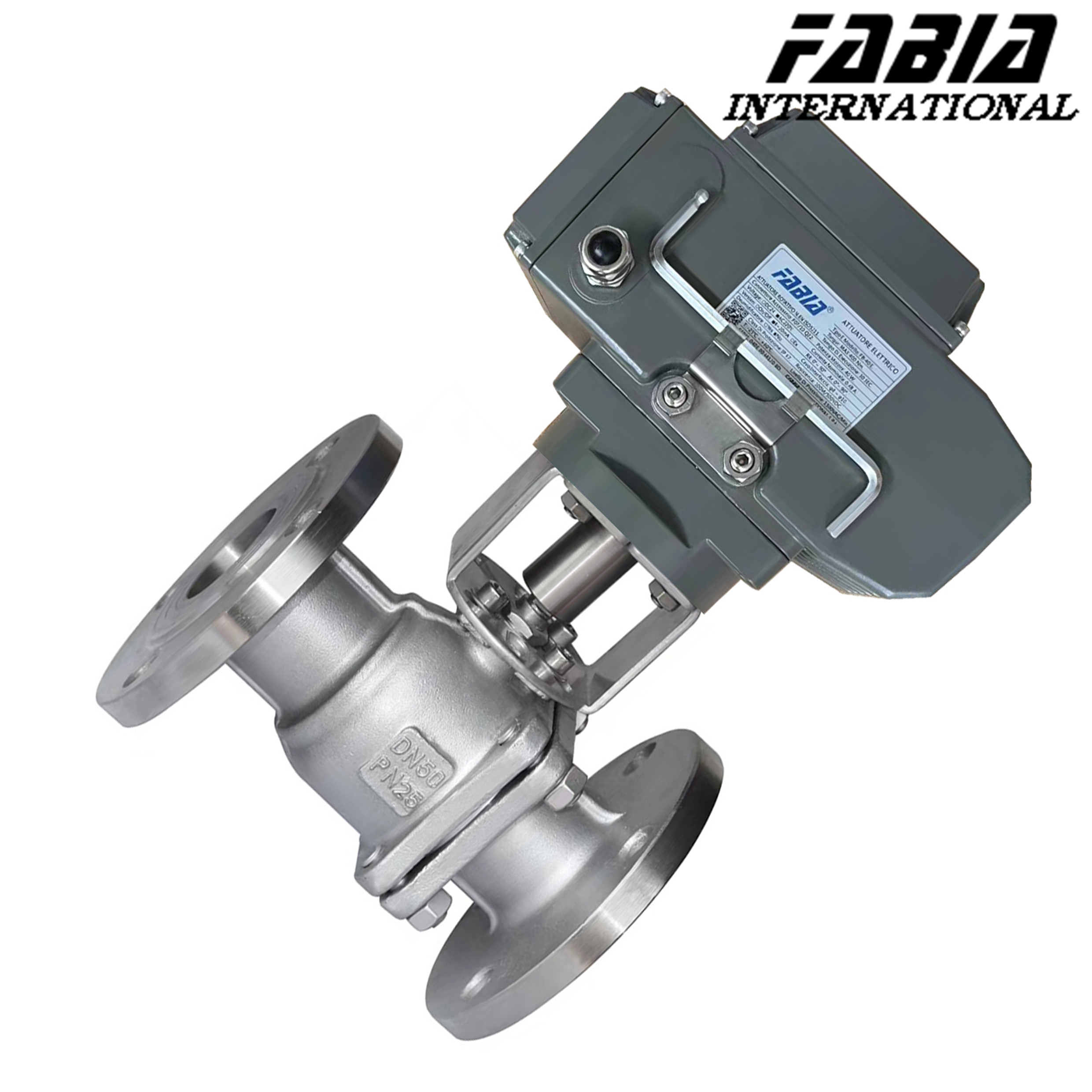

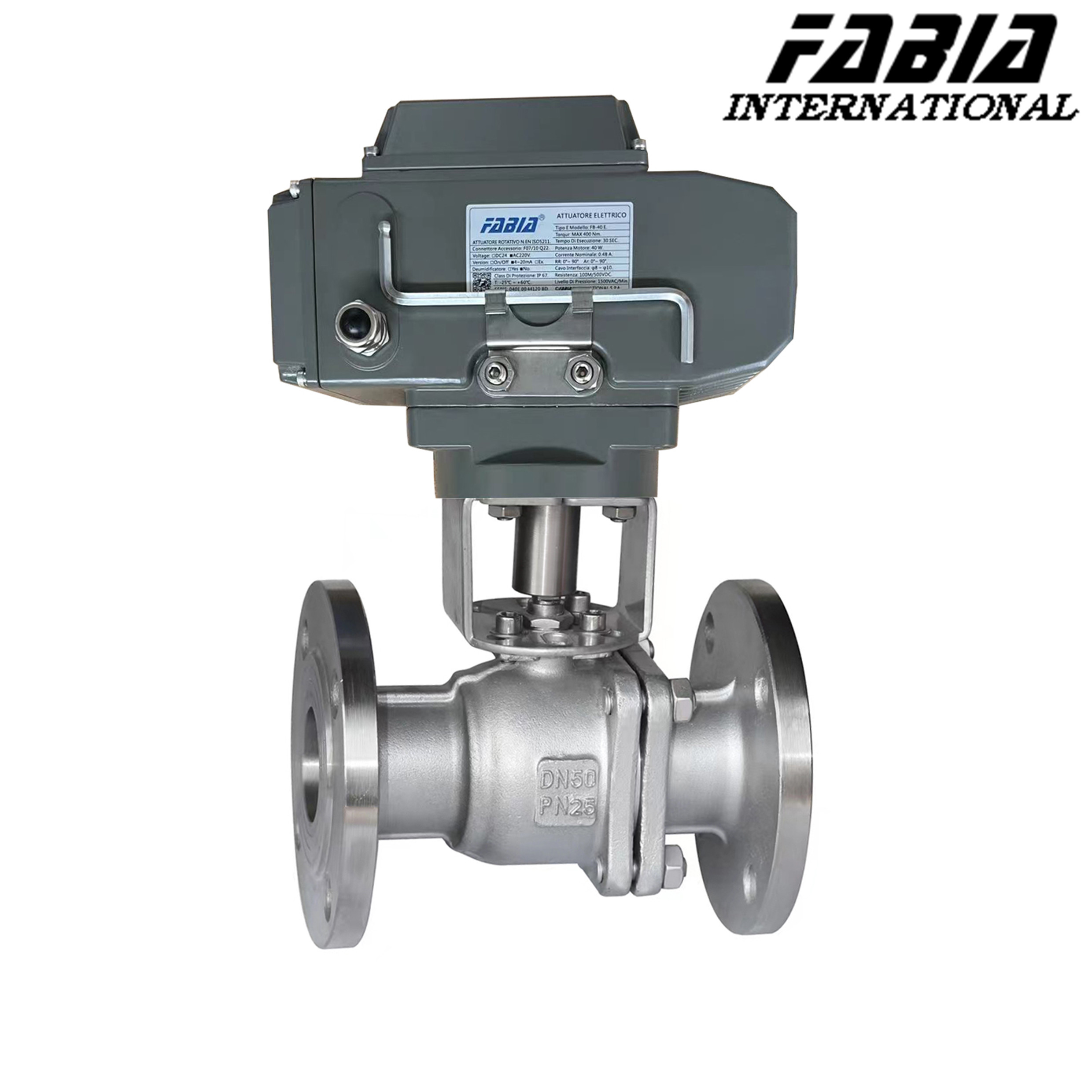

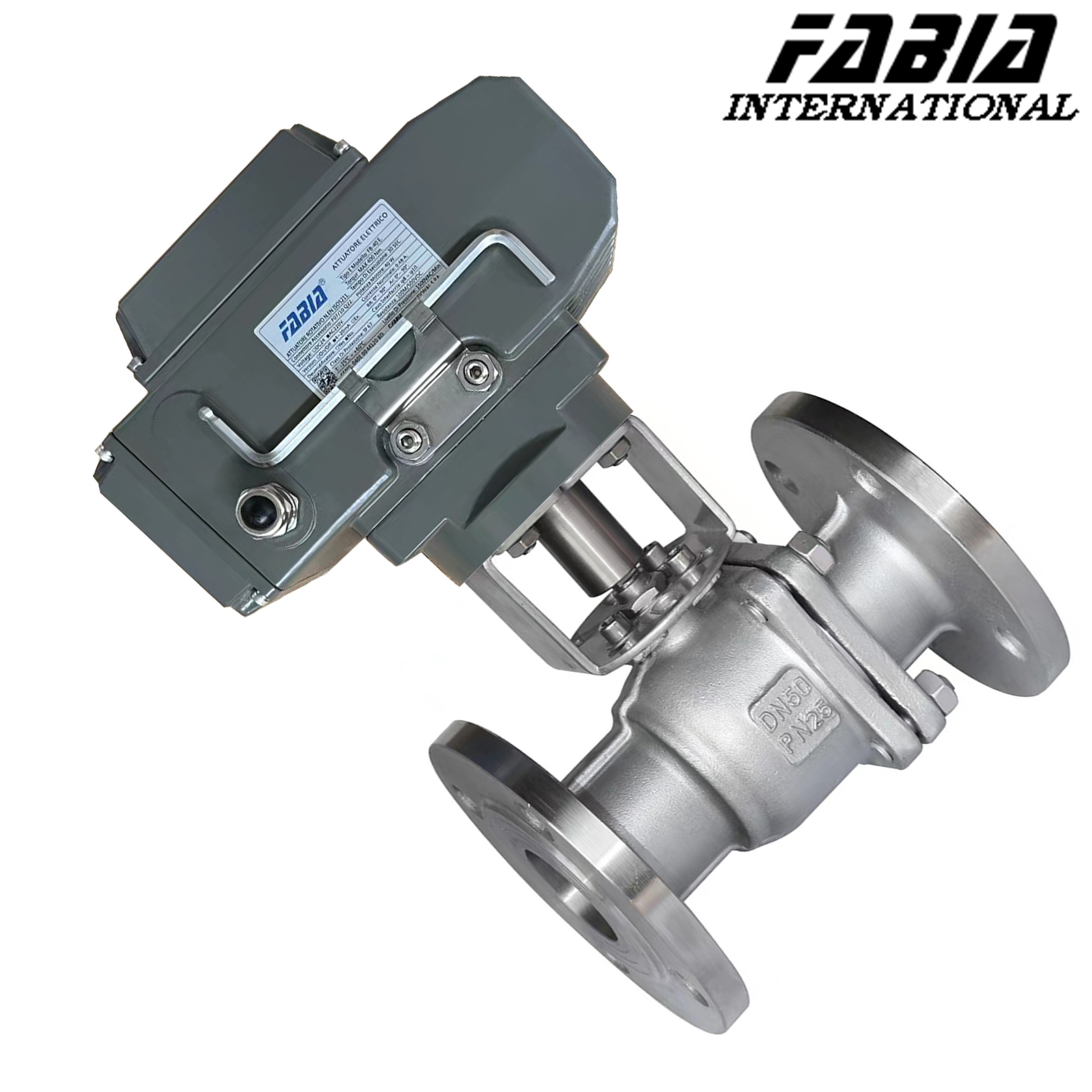

FABIA Electric High Pressure Two Way Flange Ball Valve
1. Description:
Electric high pressure two-way flange ball valve: has the function of changing the medium flow, pressure and temperature, suitable for water, steam, air and other media, is one of the commonly used valves in industry, is widely used in water heating, chemical, Marine, equipment and other industries, is an intelligent control system, and is not subject to the media cleanliness, installation Angle restrictions.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Electric High Pressure Two Way Flange Ball Valve | |
| Size: | 1/8 inch ～ 8 inch | |
| Material: | WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti | |
| Connection type: | Welded connection/flange connection/thread connection/clamp connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K； | |
| Temperature: | -196℃～540℃ | |
| Model: | FB-Q.......... | |
3. Features:
- External leakage is blocked, the internal leakage is easy to control, and the use is safe.
- Electric two-way valve is completed by electromagnetic force acting on the iron core sealed in the magnetic insulation tube, and there is no dynamic seal, so the external leakage is easy to block.
- Structure of the electric two-way valve is easy to control internal leakage until it is reduced to zero.
- Electric two-way valve itself has a simple structure and low price, and the advantages of the electric two-way valve are more obvious than that of other kinds of actuators such as regulating valves, which are easy to install and maintain.
- Action express, small power, lightweight appearance.
- Response time of the electric two-way valve can be as short as a few milliseconds, and the coil power consumption of the properly designed electric two-way valve is very low, which is an energy-saving product.
- Can also be done only to trigger the action, automatically maintain the valve position, usually no power consumption.
- Electric two-way valve is small in size, saving space, lightweight and beautiful.
- Adjustment accuracy is limited, the applicable medium is limited.
- Electric two-way valve usually has only two states of switch, the spool can only be in two limit positions, and the adjustment accuracy can not be continuousl.
