Stainless Steel Flue Flapper Valve Fuel Damper Valve Suppliers
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,CE,CCS,DNV |
| Model Number | 1/8 inch ～ 36 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Flue Flapper Valve | ValveType | Damper Valve |
|---|---|---|---|
| Material | Stainless Steel | ActuatorType | Pneumatic |
| Application | Petroleum, Chemical, Power, Etc. | ControlMode | Manual/Pneumatic |
| SealType | Stainless Steel | FlowRate | 2.5m³/h |
| Fluid | Air | Pressure | 1.6Mpa |
| Temperature | 1000℃ | ||
| Highlight | damper valve suppliers,fuel damper valve,Stainless Steel Flue Flapper Valve |
||
Product Description

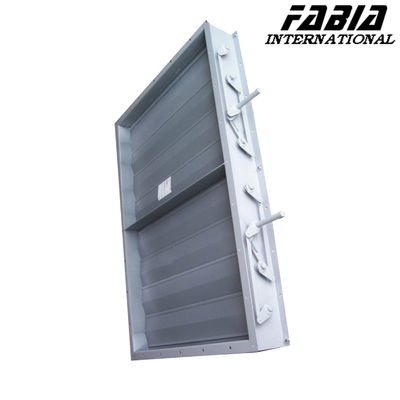

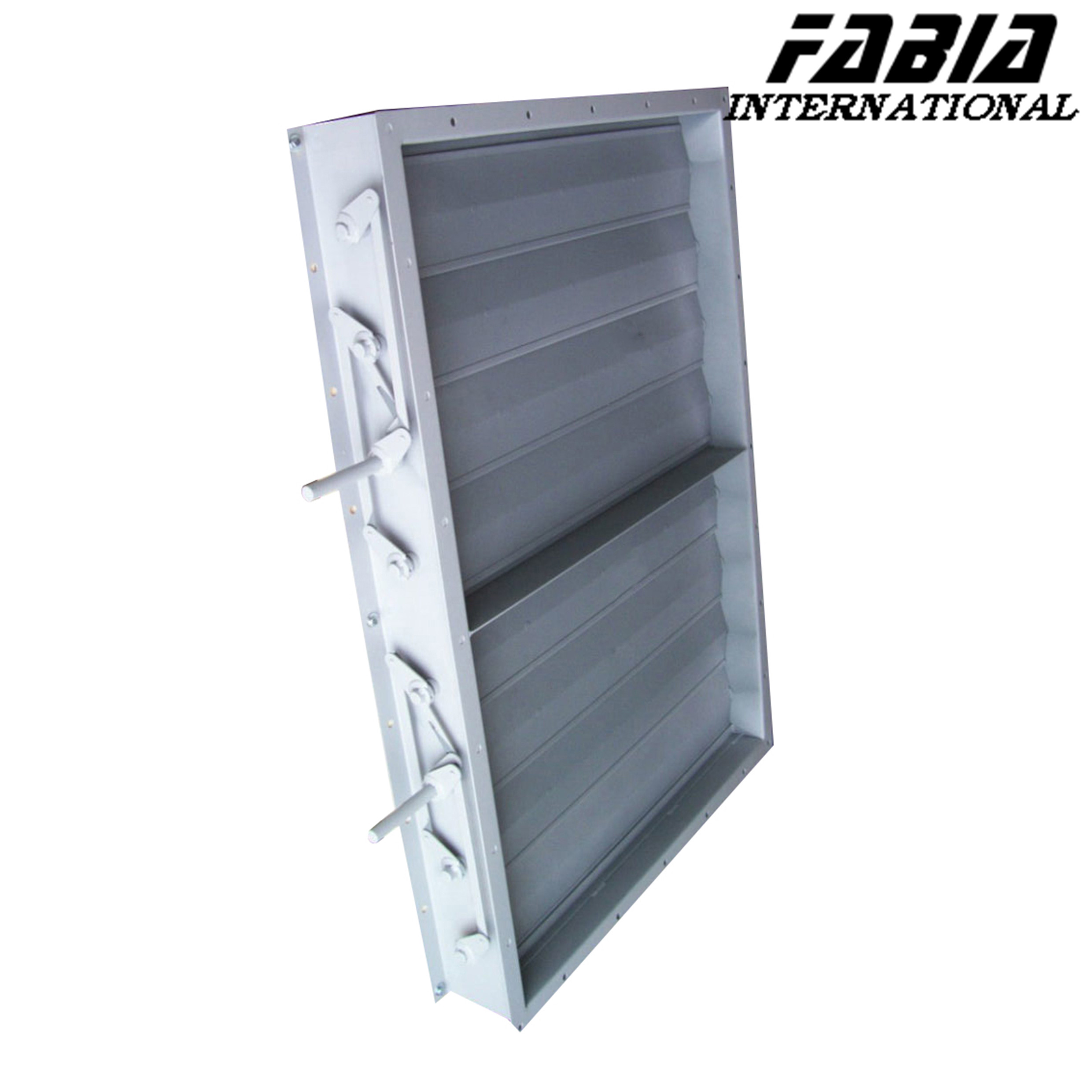

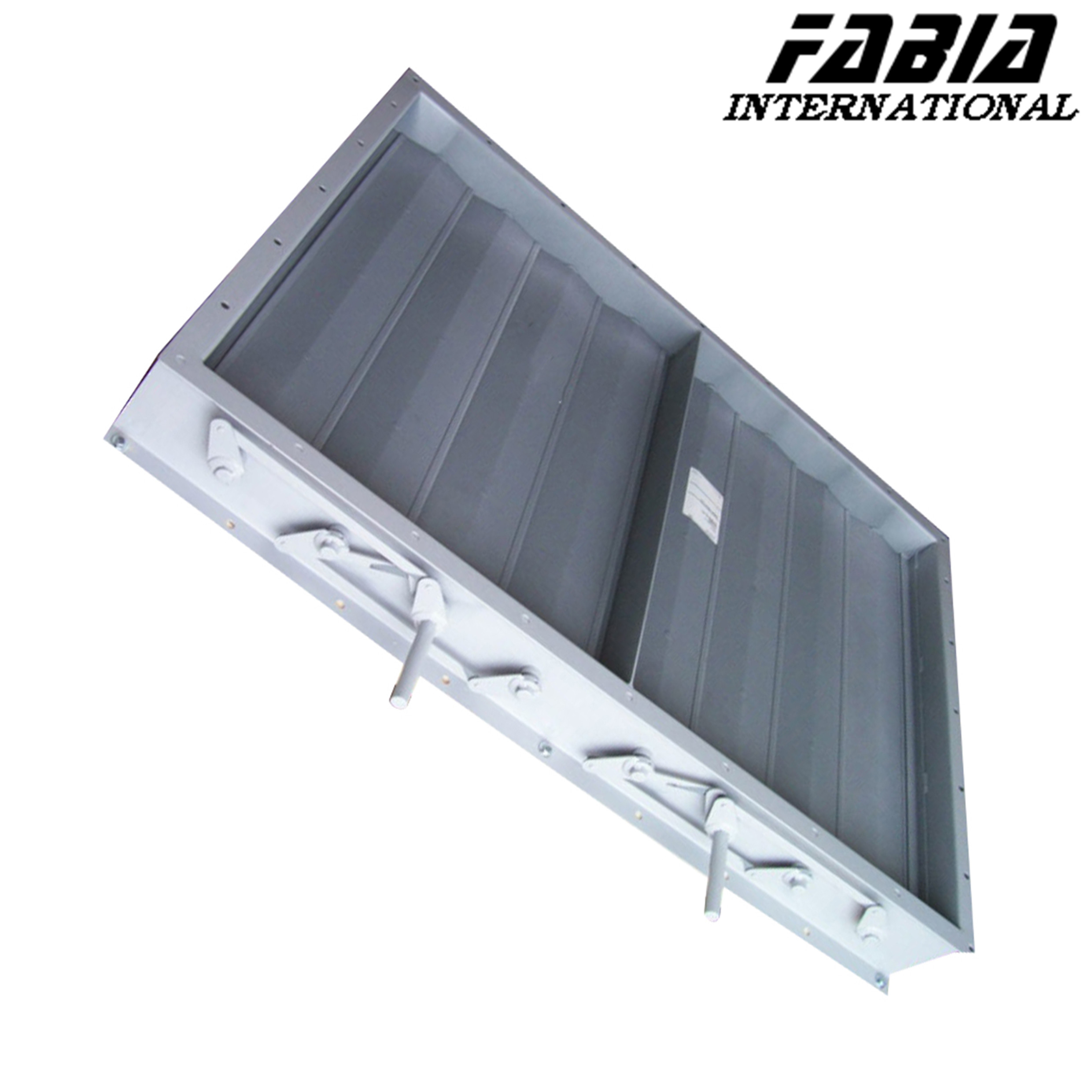

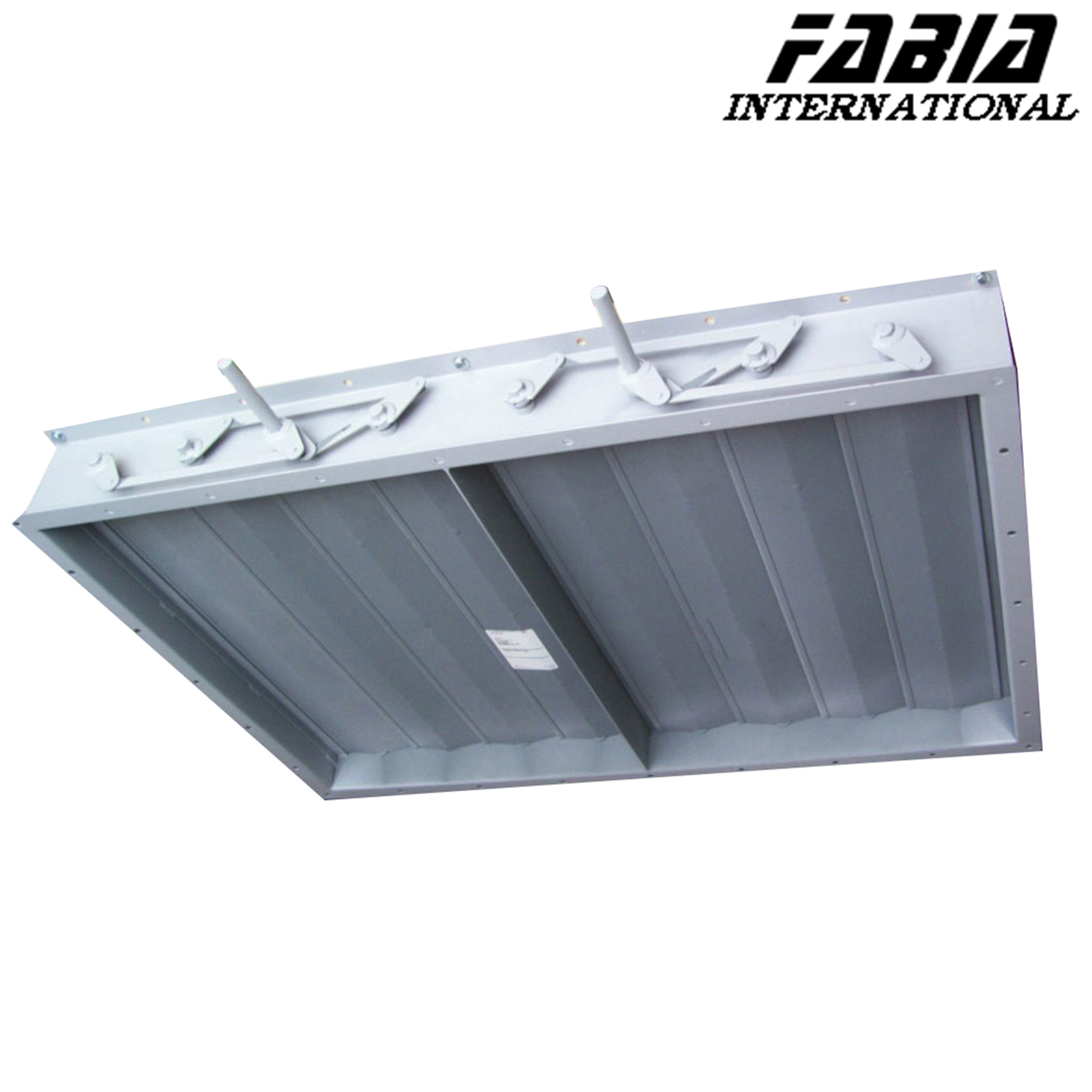

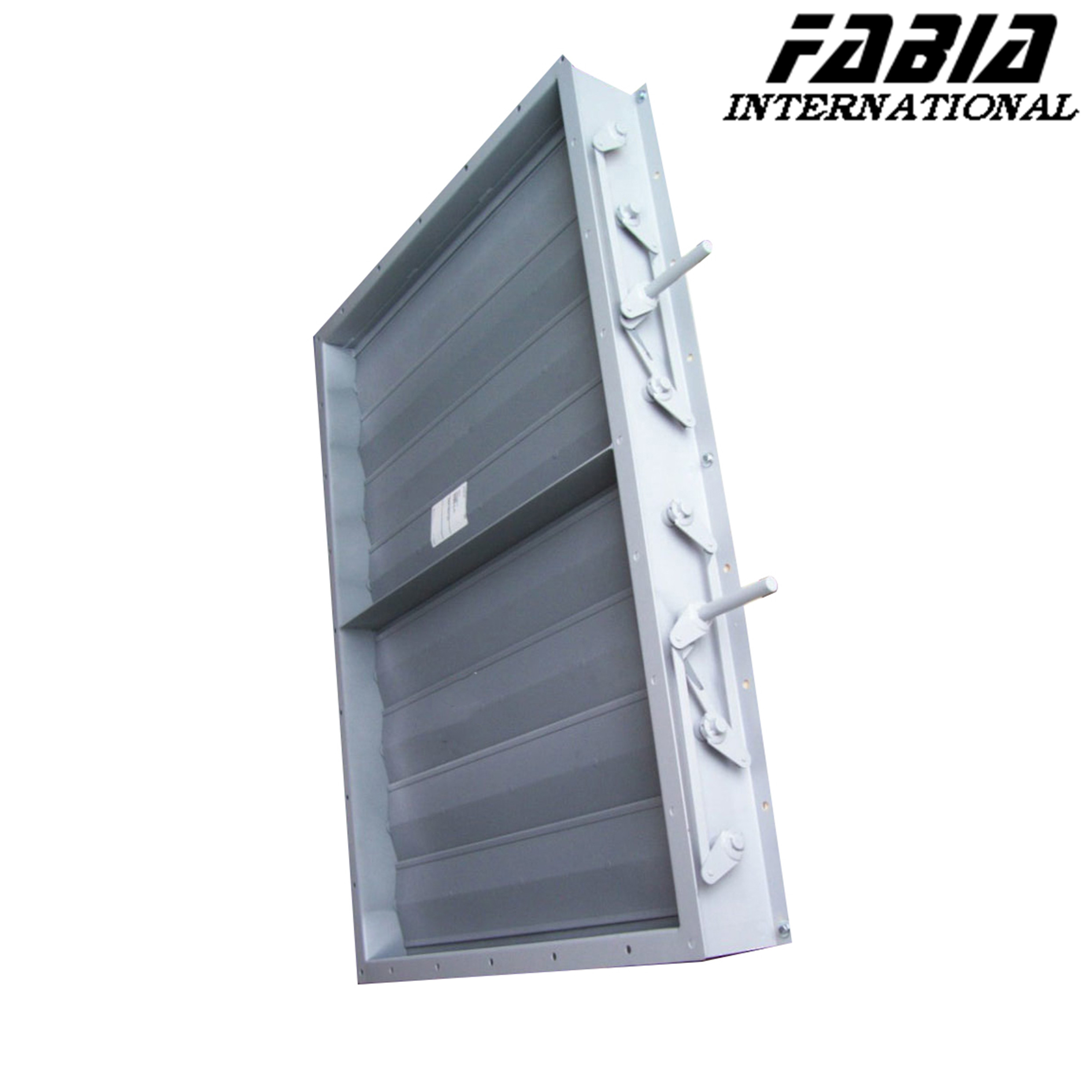

FABIA Flue Flapper Valve Stainless Steel Flue Flapper Valve
1. Description:
Flue gas baffle valve is mainly used in the inlet, outlet or bypass flue of the absorption tower of the flue gas desulfurization system to isolate the flue gas flow, and can also be used in other flue gas pipelines with relatively high isolation requirements.
Scope of application: chemical, petroleum, metallurgy, paper, pharmaceutical and other industries.
Flue baffle valve is mainly used in boiler flue fan outlet, high temperature resistance, fast opening, pressure resistance without deformation.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flue Flapper Valve Stainless Steel Flue Flapper Valve | |
| Size: | 1/8 inch ～ 18 inch | |
| Material: | WCB,GGG40,FCD,SS304,SS304L,SS316,SS316L,ST37(Q235B),SS410 | |
| Connection type: | Butt /Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | PN0.1～PN16 | |
| Temperature: | -40℃～1000℃ | |
| Model: | FB-DB.......... | |
3. Features:
- When working normally, the switch is flexible, no jamming phenomenon, and the resistance is small.
- After closing, there is no internal leakage, leakage, good sealing, no air leakage, air leakage phenomenon.
- Opening and closing signals are connected with DCS to achieve online monitoring.
- Easy operation, short installation period, can be completed in the minor repair period.
- Long service life, a basic installation does not need maintenance.
- New type of hydraulic drive, high stability.
- No deformation at high temperature, no soot collection.
- Flange bolts are used to connect with the flue, easy to install and disassemble.
- Production process conforms to relevant industry standards.
- Use of special sealing materials, patented technology, good sealing performance, wear resistance.
