High Performance Manual Two Piece Stainless Steel Industrial Ball Valve

  • High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
  • High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
  • High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
  • High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
  • High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Manual Two-Piece Ball Valve Valve Type High Pressure Ball Valve
Valve Material Stainless Steel Valve Operation Manual
Valve Connection Threaded Valve Sealing Metal Sealed
Valve Feature Fire Safe, Anti-Static, Blow-out Proof Stem Valve Certification API, CE, ISO
Valve Structure Floating Ball, Trunnion Mounted Ball Valve Pressure 150LB-2500LB
Valve Application Oil, Gas, Chemical, Water Valve Size 1/2''-8''
Valve Standard ANSI, DIN, JIS, GB, BS Valve Temperature -196℃-540℃
Highlight

Manual Industrial Ball Valve

,

Stainless Steel Industrial Ball Valve

,

Two Piece Industrial Ball Valve
Leave a Message
Product Description

High Performance Manual Two Piece Stainless Steel Industrial Ball Valve



1. Description:



High pressure manual ball valve is widely used in petroleum, chemical, electric power, metallurgy, pharmaceutical, food and other industrial fields, used to control all kinds of large pressure, viscous medium pipelines, such as conveying oil, gasoline, natural gas, water and other liquid or gas medium pipeline system. It can also be applied to seawater, fresh water, sewage, drinking water and other water treatment systems.



2. Specification:



FABIA Valve Parameter List
Valve type: High Performance Manual Two Piece Stainless Steel Industrial Ball Valve
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • High pressure manual ball valve can withstand up to 6000PSI pressure, strong load capacity.
  • Advanced bidirectional sealing structure design, the ball and the seat reach zero leakage.
  • Design of the ball valve is flexible, and it has the characteristics of light sensitivity and simple operation when switching.
  • Good liquidity: there is no flange inside the ball valve, good liquidity and small flow resistance.
  • High-pressure manual ball valve has the pressure relief function, which can release the uncompacted gas or liquid to reduce the impact during operation.

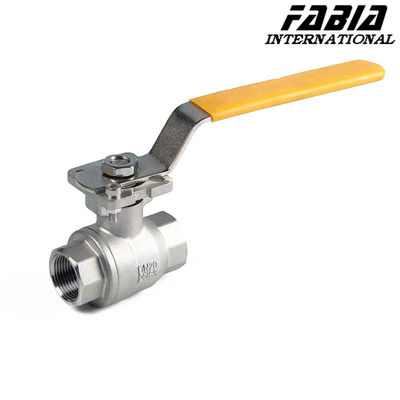

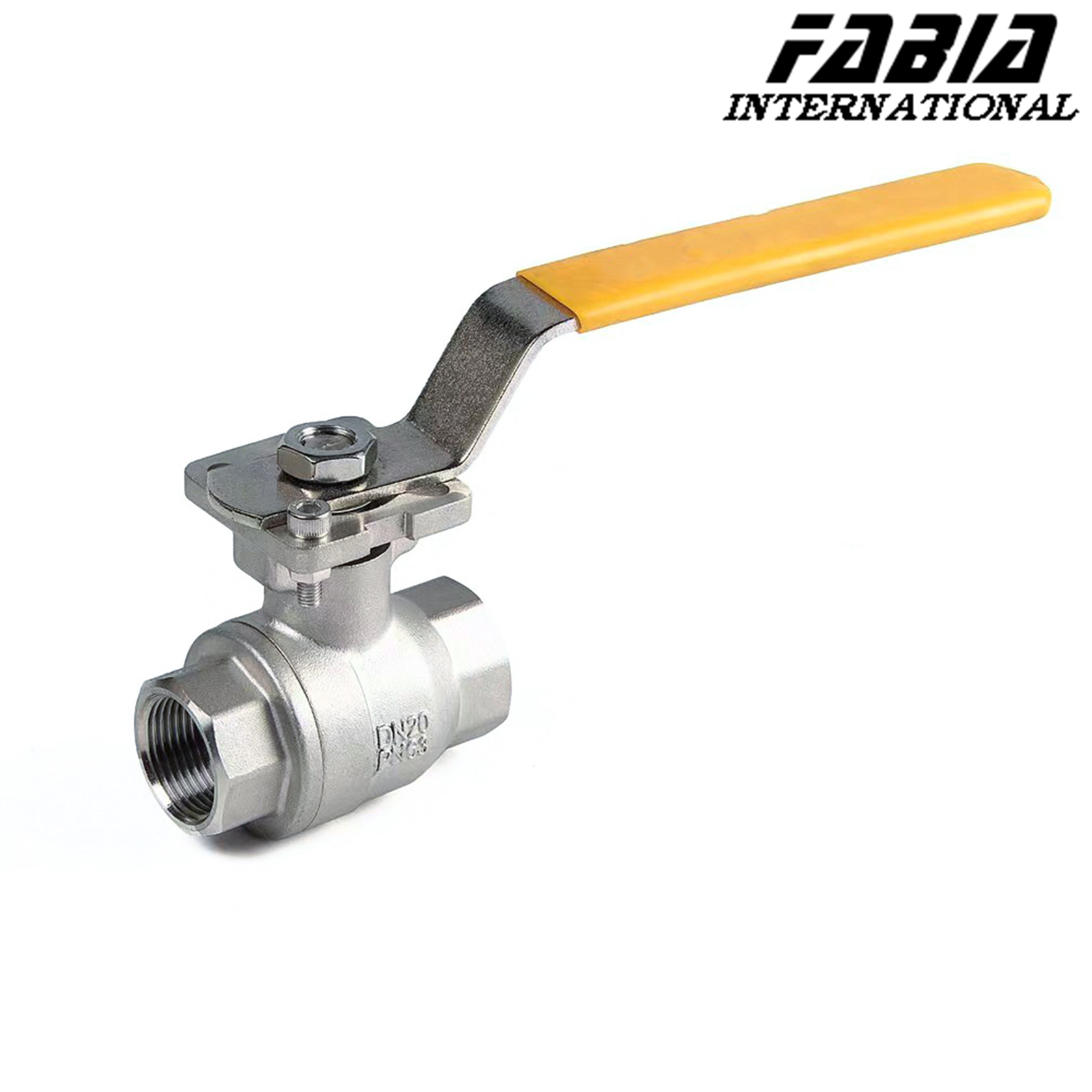

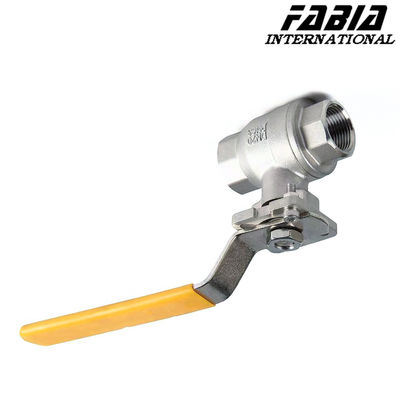

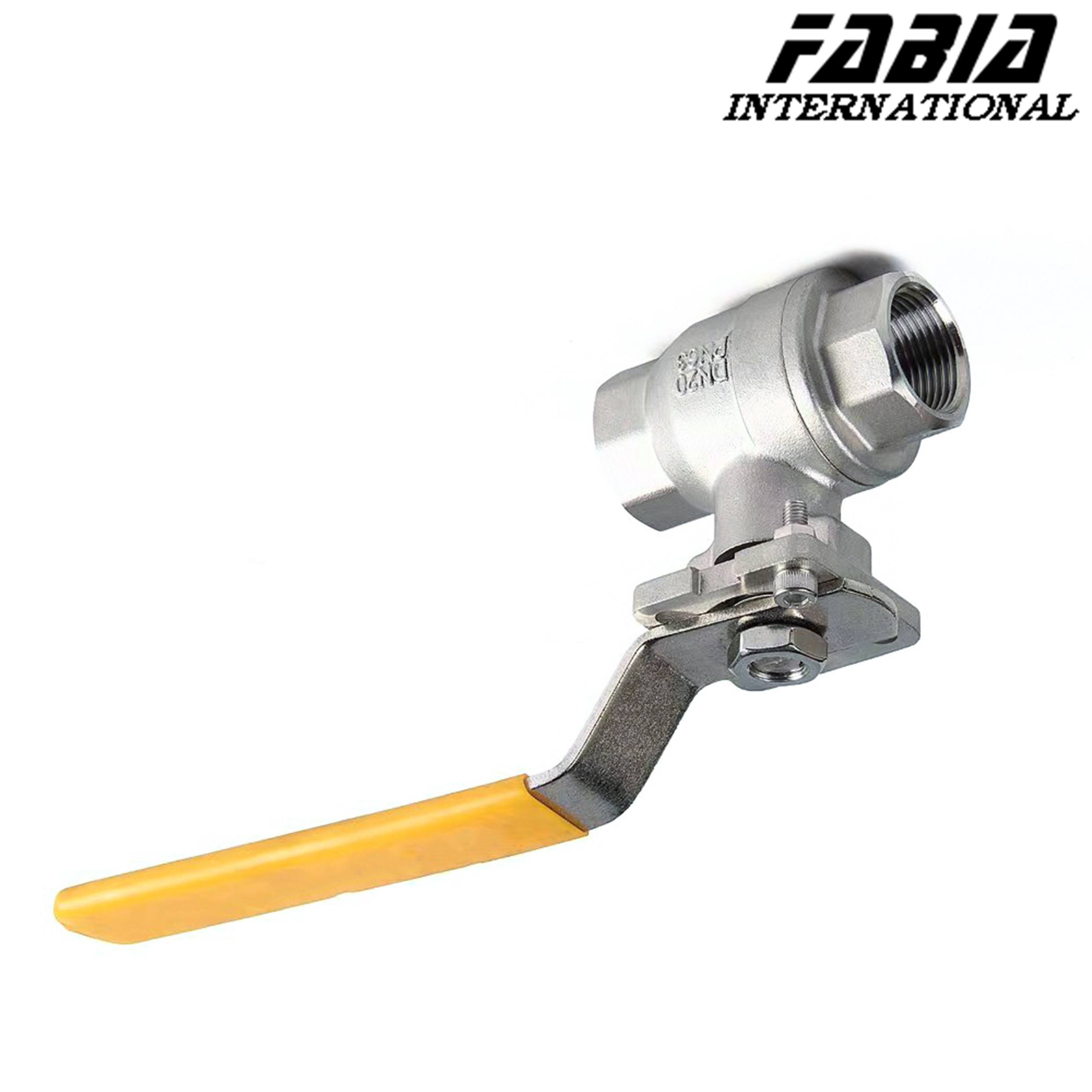

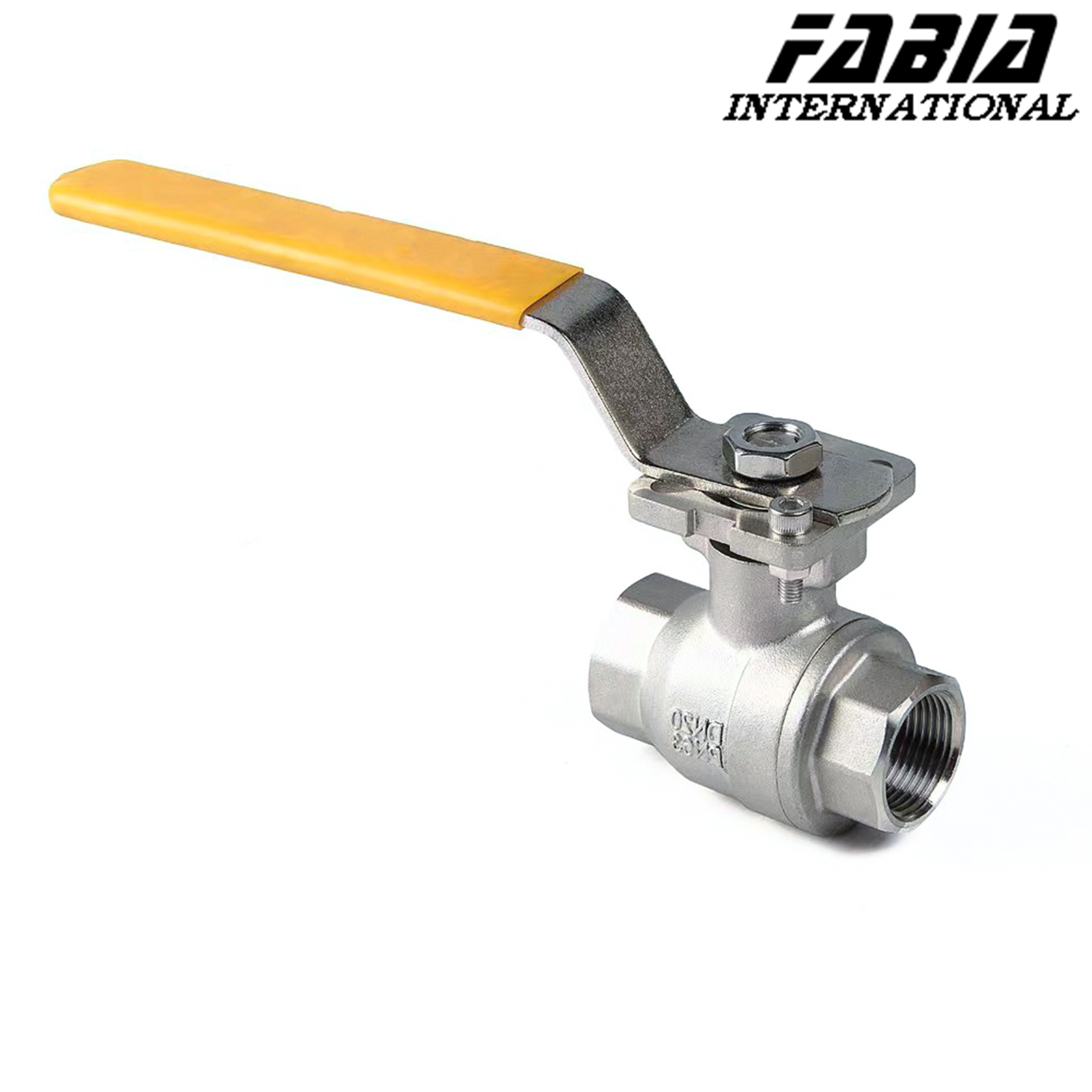

High Performance Manual Two Piece Stainless Steel Industrial Ball Valve 0

High Performance Manual Two Piece Stainless Steel Industrial Ball Valve 1
