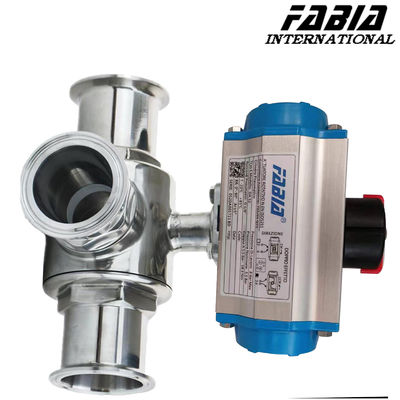

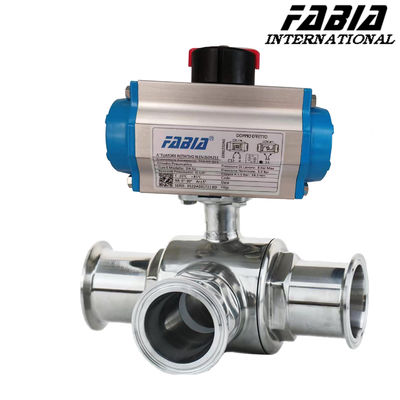

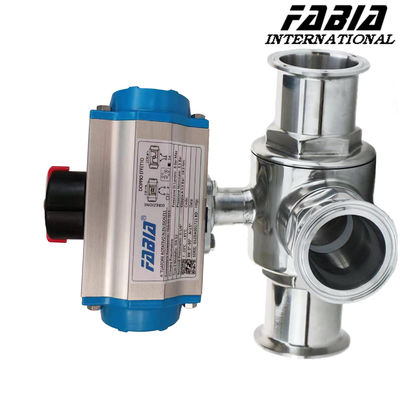

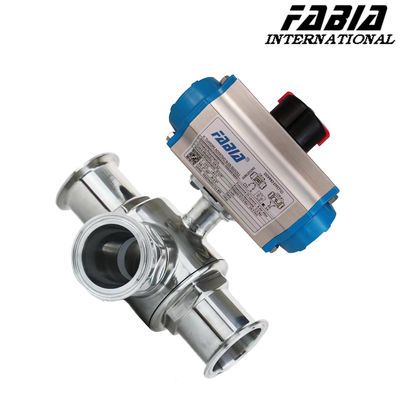

3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type

  • 3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type
  • 3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type
  • 3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type
  • 3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type
  • 3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Ball Valve/L Type Valve Type High Pressure Ball Valve
Material Stainless Steel End Connection Threaded
Operation Pneumatic Stem Seal PTFE, EPDM
Size 1/4 To 8 Inch Temperature Range -30 To 150℃
Pressure Rating 1000 To 2000 Psi Surface Treatment Sand Blasting, Polishing
Highlight

high pressure pneumatic ball valve

,

3/8 high pressure ball valve

,

high pressure ball valve 3/4
Leave a Message
Product Description

FABIA Pneumatic High Pressure Three Way Ball Valve/L Type



1. Description:



Ball valve working principle: ball valve inside is a steel ball with a hole, the surface is very smooth, on both sides of the PTFE seal, and the ball contact part of the arc surface, through the valve body on the bolt or press the mother to produce a sealing effect, the top of the ball a straight slot, used to transfer the torque of the handle



2. Specification:



FABIA Valve Parameter List
Valve type: Pneumatic High Pressure Three Way Ball Valve/L Type
Size: 1/8 inch ～ 8 inch
Material: WCB,Q235B,2507,A105,CF8(304),CF8M(316),CF3M (316L),CF3(304L),PVC,ZG1Cr18Ni9Ti,ZG1Cr18Ni12Mo2Ti
Connection type: Welded connection/flange connection/thread connection/clamp connection
Driving model: Manual/Worm gear drive/Pneumatic/Electric
Pressure rating: PN1.0～PN64,ANSI CLASS 150-900,JIS10-20K；
Temperature: -196℃～540℃
Model: FB-Q..........



3. Features:



  • Compact structure, fast opening and closing, smooth flow path, low fluid resistance.
  • Good sealing performance: the use of four-sided seat material polytetrafluoroethylene elastic deformation to achieve leak-free sealing.
  • Multi-purpose valve: any port can be used as an entrance without leakage, three can be made into L-shaped port.
  • Easy maintenance: After the system pressure relief, without removing the entire valve body can be inspected and repaired.
  • Widely used in water supply, petrochemical, metallurgy, mining, textile, energy, paper, food, steel and other pipeline systems to switch the flow of the medium and the diversion of the medium or mixed fluid.











3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type 0

3/4" 3/8" High Pressure Pneumatic Ball Valve Three Way L Type 1
