Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control

  • Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control
  • Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control
  • Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control
  • Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control
  • Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV
Model Number 1 inch ～ 40nch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Round Butterfly Damper Valve Connection Flange
Material Stainless Steel Valve Body Stainless Steel
ControlMode Manual/Pneumatic/Electric Design Pressure ±6000Pa
Leakage 56l/s/m³（2000Pa） Apply Semiconductors, LCD Panels, Biopharmaceuticals
Highlight

Manual Butterfly Damper Valve

,

Pneumatic Butterfly Damper Valve

,

Electric Control Butterfly Damper Valve
Leave a Message
Product Description

Manual/Pneumatic/Electric Control Round Butterfly Damper Valve for Air Volume Control

1. Description:



The product is mainly used in industries such as semiconductors, LCD panels, and biopharmaceuticals for ventilation and exhaust system air volume control valves.Divided into micro, medium, and large sizes based on the size .



2. Specification:



Round butterfly(Micro Size)

Product No. Size Height Outer size D(shaft) Control Model
FB-RBD-0020-01 20 25 105 D12 Manual/Pneumatic/Electric
FB-RBD-0025-02 25 25 115 D12
FB-RBD-0032-03 32 25 135 D12
FB-RBD-0040-04 40 25 145 D12
FB-RBD-0050-05 50 30 160 D12
FB-RBD-0063-06 63 30 180 D12
FB-RBD-0080-07 80 30 195 D12
FB-RBD-0100-08 100 30 215 D12
FB-RBD-FREE FREE



Round butterfly(Medium Size)

Product No. Size Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
VB-RBD-0100-01 D100 150 1.2 1.5 D12 Manual/Pneumatic/Electric
VB-RBD-0100-02 D150 150 1.2 1.5 D12
VB-RBD-0100-03 D200 200 1.2 1.5 D12
VB-RBD-0100-04 D250 250 1.2 2.0 D12
VB-RBD-0100-05 D300 250 1.2 2.0 D12
VB-RBD-0100-06 D350 250 2.0 2.5 D25
VB-RBD-0100-07 D400 250 2.0 2.5 D25
VB-RBD-0100-08 D450 250 2.0 2.5 D25
VB-RBD-0100-09 D500 250 2.0 3.0 D25
VB-RBD-0100-10 D550 250 2.0 3.0 D25
VB-RBD-0100-11 D600 250 2.0 3.0 D25
VB-RBD-FREE FREE



3. Features:



  • Type:micro, medium, and large size
  • Design Pressure:±6000Pa
  • Leakage:56L/s/m³(2000Pa)
  • Beautiful, low noise, and low resistance l

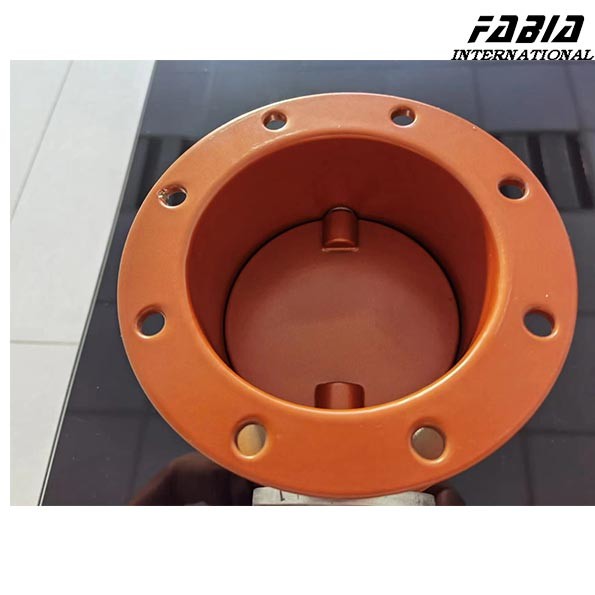

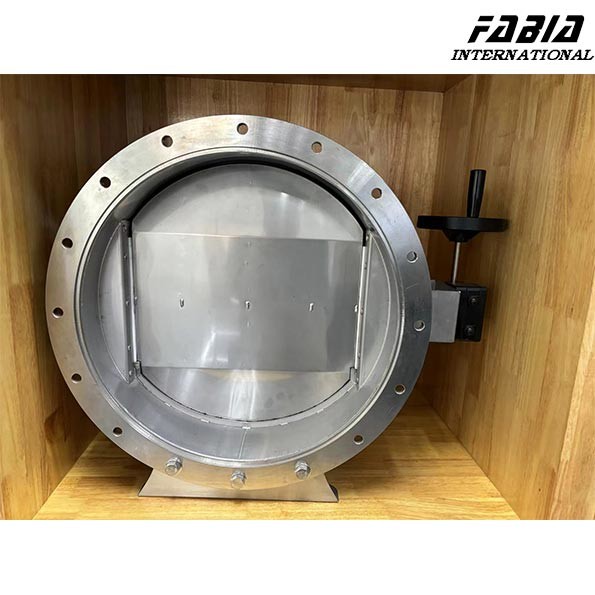

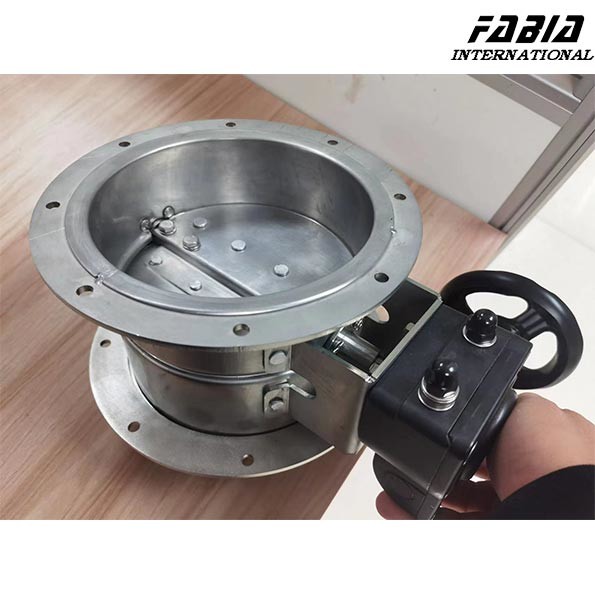

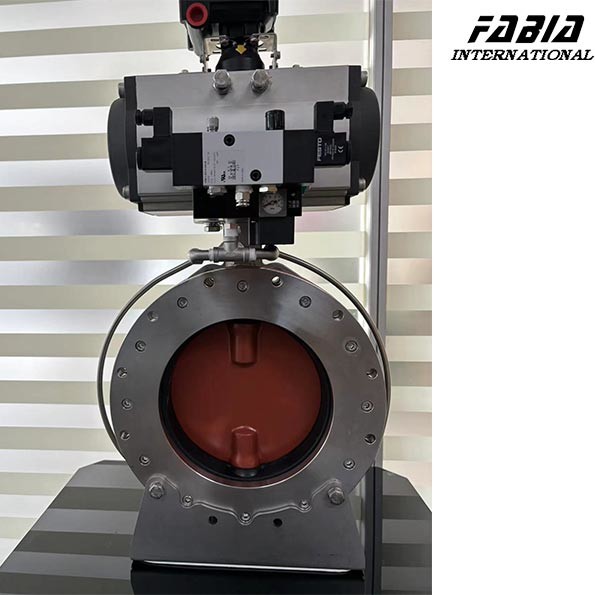

Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control 0

Manual/Pneumatic/Electric Control Round Butterfly Damper Valve For Air Volume Control 1
