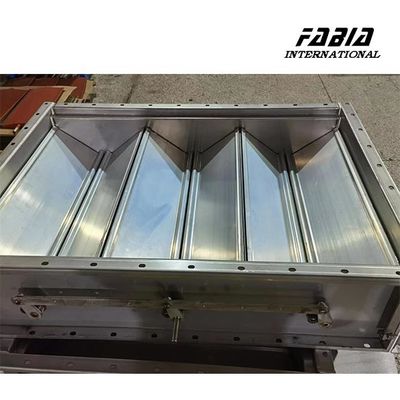

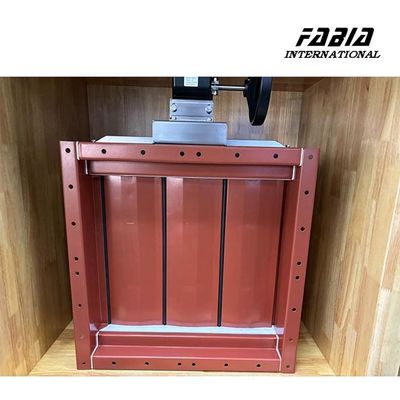

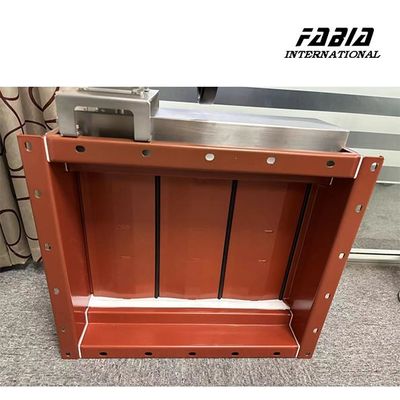

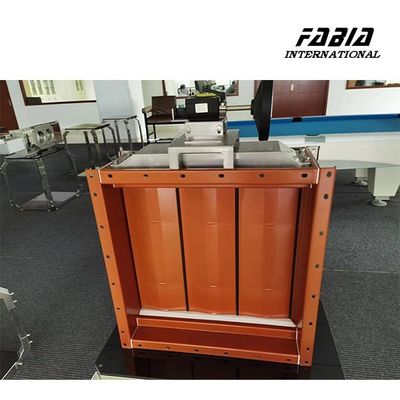

Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial

  • Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial
  • Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial
  • Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial
  • Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial
  • Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV，CCS
Model Number 300mm*300mm-1000mm*1000mm
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Rectangular Multi-balde Damper Valve Connection Flange
Material Stainless Steel Valve Body Stainless Steel
ControlMode Worm Gear Drive/Pneumatic/Electric Design Pressure ±6000Pa
Leakage 56l/s/m³（2000Pa） Apply Semiconductors, LCD Panels, Biopharmaceuticals
Highlight

Worm Gear Drive Multi-Blade Damper

,

Rectangular Multi-Blade Damper

,

Precise Flow Control Multi-Blade Damper
Leave a Message
Product Description

Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial

1. Description:

Rectangular Multi-Blade Dampe is mainly used for regulating the air volume of ventilation and exhaust systems in fields such as semiconductors, LCD panels, and biomedicine. Multi-Blade Dampe structure can be designed as single zone, double zone, or four zone according to the valve diamention.

Enhance airflow control precision with our Square Multi-Blade Damper featuring a robust worm gear drive mechanism. Crafted from durable stainless steel, both the valve body and blades ensure longevity and corrosion resistance, ideal for demanding industrial environments.

2. Specification:



Product No. Size(A) Size(B) Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
FB-REMD-0300*0300-01 300 300 250 2.5 2.5 D18 Worm gear drive
Pneumatic/Electric
FB-REMD-0400*0400-02 400 400 250 2.5 2.5 D18
FB-REMD-0500*0500-03 500 500 250 2.5 2.5 D18
FB-REMD-0600*0600-04 600 600 250 2.5 2.5 D18
FB-REMD-0700*0700-05 700 700 250 2.5 2.5 D18
FB-REMD-0800*0800-06 800 800 250 2.5 2.5 D18
FB-REMD-0900*0900-07 900 900 250 2.5 2.5 D18
FB-REMD-1000*1000-08 1000 1000 250 2.5 2.5 D18
FB-REMD-1100*1100-09 1100 1100 250 2.5 2.5 D18
FB-REMD-1200*1200-10 1200 1200 250 2.5 2.5 D18
FB-REMD-1300*1300-11 1300 1300 250 2.5 2.5 D18
FB-REMD-1400*1400-12 1400 1400 250 2.5 2.5 D18
FB-REMD-1500*1500-13 1500 1500 250 2.5 2.5 D18
FB-REMD-1600*1600-14 1600 1600 250 2.5 2.5 D18
FB-REMD-1700*1700-15 1700 1700 250 2.5 2.5 D18
FB-REMD-1800*1800-16 1800 1800 250 2.5 2.5 D18
FB-REMD-1900*1900-17 1900 1900 250 2.5 2.5 D18
FB-REMD-2000*2000-18 2000 2000 250 2.5 2.5 D18
FB-REMD-2200*2200-19 2200 2200 250 3.0 2.5 D18
FB-REMD-2500*2500-20 2500 2500 250 3.0 2.5 D18
FB-REMD-3000*3000-21 3000 3000 250 3.0 2.5 D18
FB-REMD-FREE FREE



3. Features:



  • Material:Stainless steel
  • Sealing material:PTFE
  • Pressure Design:±6000Pa
  • Maximum leakage:56l/s/m³(2000Pa)
  • The blade adopts a diamond structure, which can reduce the local resistance loss of the valve during operation. At the same time, the blade is reinforced and placed inside the double-layer blade, which not only looks beautiful but also achieves noise reduction effect;
  • To solve the hidden dangers caused by coating process defects during the coating process, the blades are designed as a whole structure, while the  valve bodies are designed as assembly parts;
  • The blades are fully welded to ensure strength, and the blades and valve stem are also fully welded, which is more conducive to anti-corrosion coating.
  • Control Model:Worm gear drive/Pneumatic/Electric

Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial 0

Worm Gear Drive Rectangular Multi-Blade Damper Precise Flow Control For Semiconductors Industrial 1





Attribute Name Attribute Value
Product Name Rectangular multi-blade Damper
Valve Connection Flange
Material Stainless steel
Valve Body Stainless steel
Control Mode Worm gear drive / Pneumatic / Electric
Design Pressure ±6000 Pa
Leakage 56 l/s/m³ (2000 Pa)
Application Semiconductors, LCD panels, biopharmaceuticals
Shape Rectangular
Blades Multi-blade
Adjustability Adjustable blades for precise airflow control
Sealing Excellent sealing for minimal leakage
Durability Corrosion-resistant, suitable for harsh environments
