Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System

  • Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System
  • Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System
  • Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System
  • Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System
  • Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System
Place of Origin China
Brand Name FABIA
Certification FM,AMCA,ISO9001,CE,CCS,DNV，CCS
Model Number 300mm*300mm-1000mm*1000mm
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Explosion-proof Valve Material Stainless Steel
Valve Connection Flange Valve Body Stainless Steel
ControlMode Pneumatic/Electric Design Pressure ±6000Pa
Leakage 56l/s/m³（2000Pa） Apply Ships, Cold Storage Ventilation And Exhaust Systems, Or Fire And Smoke Emergency Systems.
Highlight

High Pressure Explosion-Proof Valve

,

Emergency System Explosion-Proof Valve

,

Stainless Steel Explosion-Proof Valve
Leave a Message
Product Description

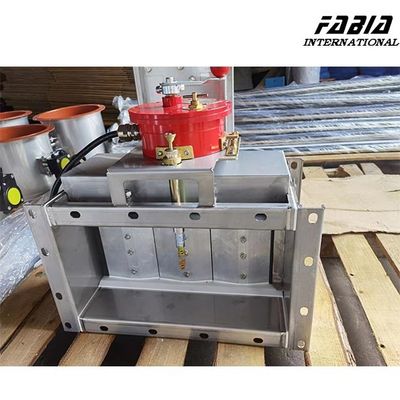

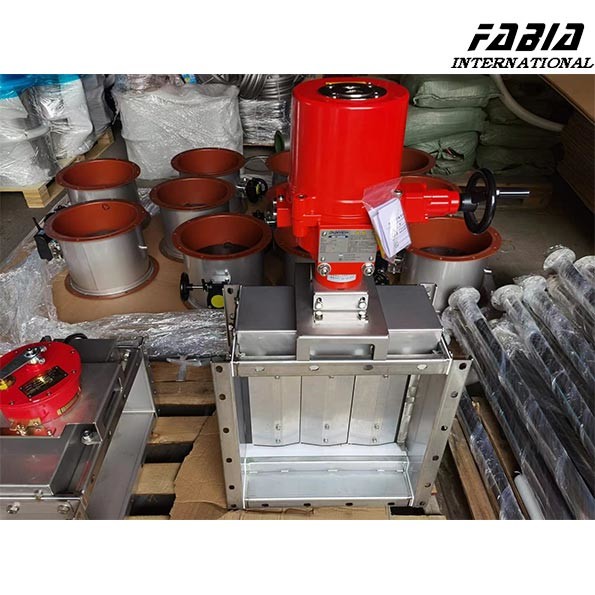

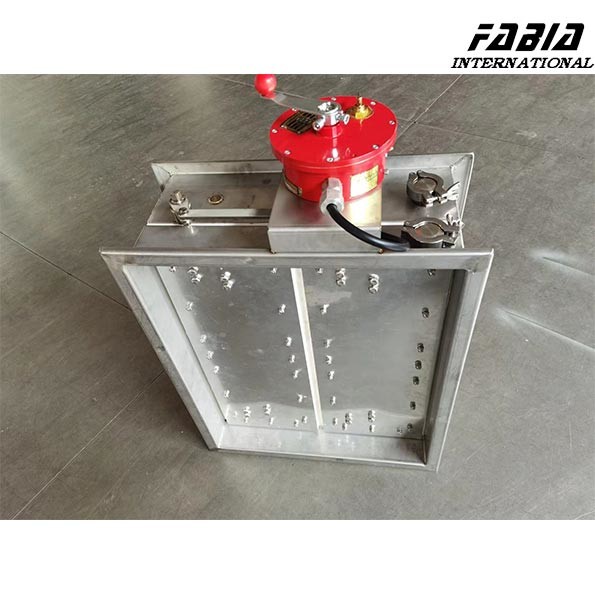

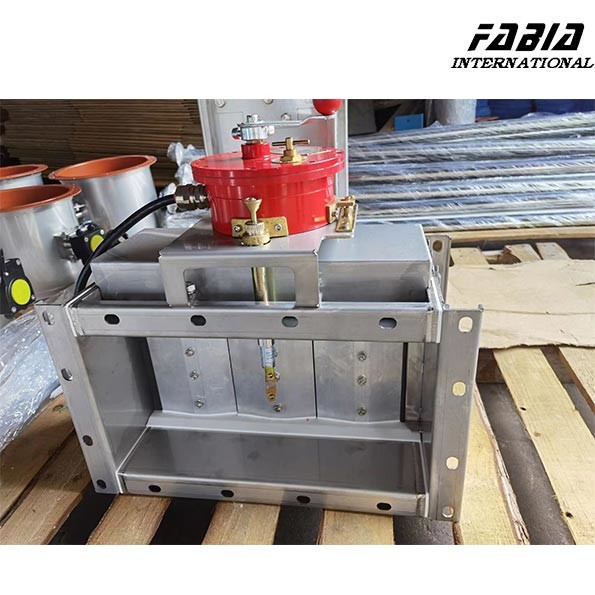

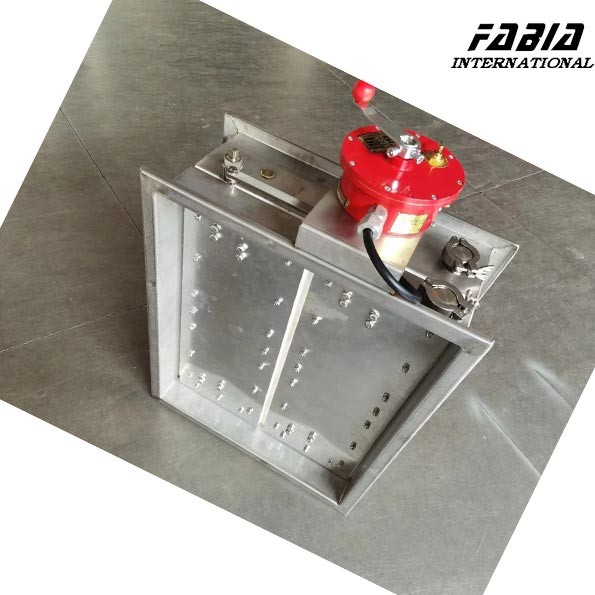

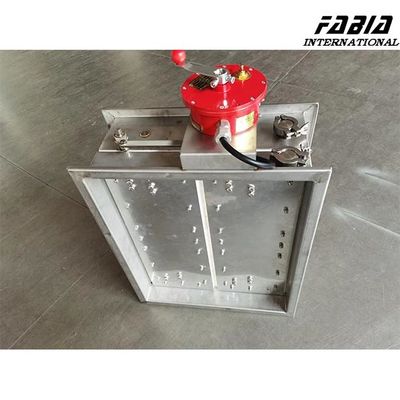

Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System

1. Description:



Explosion-Proof Valve is mainly used in ships, cold storage ventilation and exhaust systems, or fire and smoke emergency systems. Stainless Steel Explosion-Proof Valve structure can be designed as a single zone, double zone, or four zone structure according to the valve diameter, with Gewen explosion-proof valve .

2. Specification:



Product No. Size(A) Size(B) Height Thickness
(body)		 Thickness
(blade)		 D(shaft) Control Model
FB-GWEPD-0300*0300-01 300 300 250 3.0 1.2*2 D18 Pneumatic/Electric
FB-GWEPD-0350*0350-02 350 350 250 3.0 1.2*2 D18
FB-GWEPD-0400*0400-03 400 400 250 3.0 1.2*2 D18
FB-GWEPD-0450*0450-04 450 450 250 3.0 1.2*2 D18
FB-GWEPD-0500*0500-05 500 500 250 3.0 1.2*2 D18
FB-GWEPD-0550*0550-06 550 550 250 3.0 1.2*2 D18
FB-GWEPD-0600*0600-07 600 600 250 3.0 1.2*2 D18
FB-GWEPD-0650*0650-08 650 650 250 3.0 1.2*2 D18
FB-GWEPD-0700*0700-09 700 700 250 3.0 1.2*2 D18
FB-GWEPD-0750*0750-10 750 750 250 3.0 1.2*2 D18
FB-GWEPD-0800*0800-11 800 800 250 3.0 1.2*2 D18
FB-GWEPD-0850*0850-12 850 850 250 3.0 1.2*2 D18
FB-GWEPD-0900*0900-13 900 900 250 3.0 1.2*2 D18
FB-GWEPD-0950*0950-14 950 950 250 3.0 1.2*2 D18
FB-GWEPD-1000*1000-15 1000 1000 250 3.0 1.2*2 D18
FB-GWEPD-FREE FREE



3. Features:



  • Material:Stainless steel 310S
  • Blade:Hollow Blade ,NAS600
  • Contact type jog switch,70 ℃ fireproof probe, 180 ℃ smoke exhaust probe
  • Pressure Design:±6000Pa
  • Maximum leakage:56l/s/m³(2000Pa)
  • Explosion proof actuator

Stainless Steel Explosion-Proof Valve High Pressure Design For Emergency System 0

Attribute Name Attribute Value
Product Name Explosion-proof valve
Material Stainless steel
Valve Connection Flange
Control Mode Pneumatic/Electric
Design Pressure ±6000Pa
Leakage 56l/s/m³ (2000Pa)
Apply Ships, cold storage ventilation and exhaust systems, or fire and smoke emergency systems
Temperature Range -40°C to +200°C
Size Range 300*300 to 1000*1000
Certification ATEX, CE, ISO 9001,FM
Fire Resistance Rated for 2 hours at 1000°C
