Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry

  • Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry
  • Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry
  • Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry
  • Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry
  • Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry
Place of Origin China
Brand Name FABIA
Certification ISO9001,CE,CCS,DNV
Model Number 1/8 inch ～ 36 inch
Document Product Brochure PDF
Minimum Order Quantity 1 set
Price Negotiable
Packaging Details Cartons/Wooden cases
Delivery Time 15-30 work days
Payment Terms L/C, D/A, D/P, T/T, MoneyGram, Western Union
Supply Ability 100-1000 set per week

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Pneumatic Flanged Butterfly Valve Valve Type Butterfly
Valve Material Stainless Steel Valve Operation Pneumatic
Valve Connection Flanged Valve Application Petroleum, Chemical, Power, Etc.
Valve Body Stainless Steel Valve Pressure 1.6MPa
Valve Seat NBR、EPDM、Vition Valve Temperature -30℃~+120℃
Highlight

flanged centerline butterfly valve

,

oil industry pneumatic butterfly valve

,

gas industry stainless steel butterfly valve
Leave a Message
Product Description

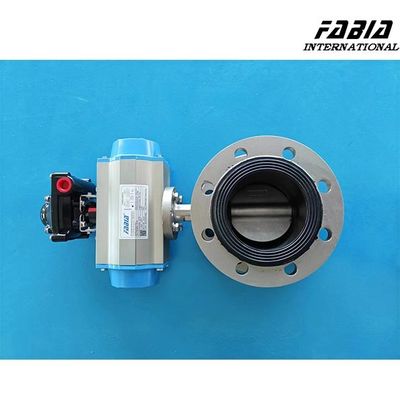

Centerline Pneumatic Stainless Steel Flanged Butterfly Valve



1. Description:



Centerline Pneumatic Stainless Steel Flanged Butterfly Valve is composed of a pneumatic actuator and a flanged soft seal butterfly valve, which is suitable for regulating the flow and stopping the medium on the water supply and drainage pipe of food, medicine, chemical industry, petroleum, electric power, textile, paper making and other gas pipes with the temperature ≤120℃ and nominal pressure ≤1.6MPa.

This valve combines durable stainless steel construction with soft-seated sealing, ensuring reliable performance and efficient flow control in various industrial applications.

2. Specification:



Attribute Name Attribute Value
Product Name Pneumatic Flanged Butterfly Valve
Valve Type Butterfly
Valve Material Stainless Steel
Valve Operation Pneumatic
Valve Connection Flanged
Valve Application Petroleum, Chemical, Power, etc.
Valve Body Material Stainless Steel
Valve Pressure 1.6 MPa
Valve Seat Material NBR, EPDM, Viton
Valve Temperature -30°C to +120°C
Actuator Type Pneumatic
Leakage Class ANSI Class VI, ISO 5208 Class D
Fire Safe Design API 607, ISO 10497
Certification API, ISO, CE



3. Features:



  • Good two-way sealing performance, small torque value.
  • Flow characteristics tend to be straight, good adjustment performance.
  • Flange connection installation is convenient, vertical, horizontal installation can be.
  • Diversity of sealing materials, available for users to choose.
  • Can be used for pipe end as a vent valve, reliable performance.
  • Valve seat sealing ring is organically combined with the valve body to make the valve have a long service life.
  • Flange type soft seal butterfly valve design is simple, reasonable, compact structure, light weight, fast opening and closing.
  • Small torque, easy to operate, labor-saving dexterity.
  • Can be installed in any position, easy maintenance.
  • Seal can be replaced, sealing to achieve bi-directional sealing zero leakage.
  • Sealing material aging resistance, long service life, etc.



Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry 0

Centerline Pneumatic Stainless Steel Flanged Butterfly Valve For Oil And Gas Industry 1
