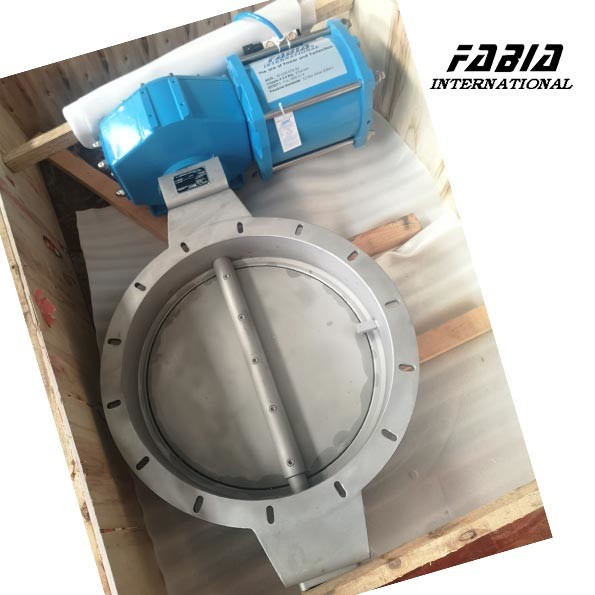

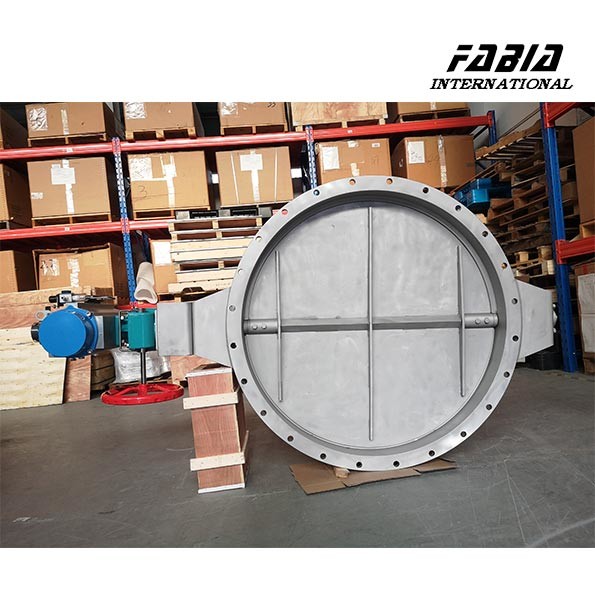

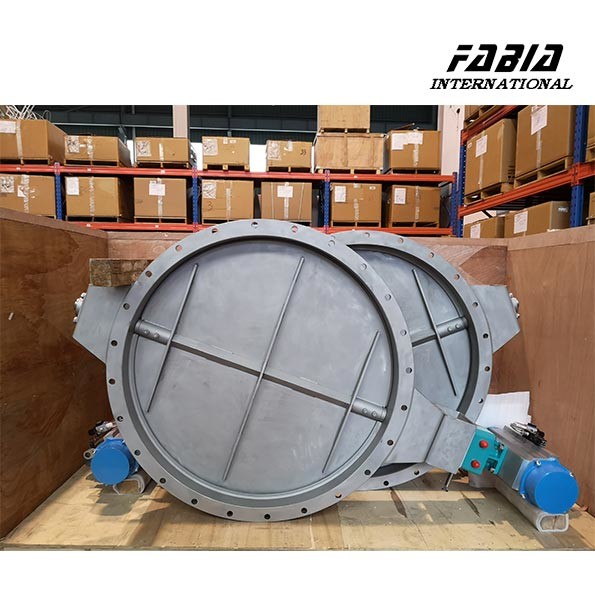

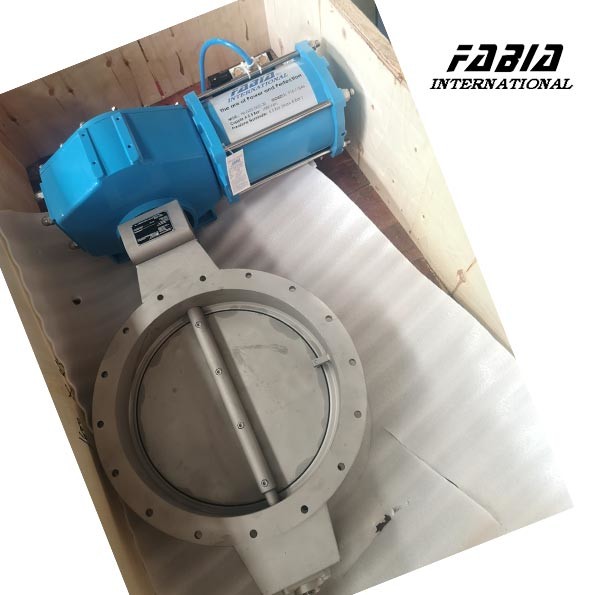

DN500 Pneumatic Marine Butterfly Valve BV High Temperature valve High Efficiency Emission Reduction
| Place of Origin | China |
|---|---|
| Brand Name | FABIA |
| Certification | ISO9001,BV,CCS,DNV |
| Model Number | 2 inch ～ 100 inch |
| Document | Product Brochure PDF |
| Minimum Order Quantity | 1 set |
| Price | Negotiable |
| Packaging Details | Cartons/Wooden cases |
| Delivery Time | 15-30 work days |
| Payment Terms | L/C, D/A, D/P, T/T, MoneyGram, Western Union |
| Supply Ability | 100-1000 set per week |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Marine Butterfly Valve | Valve Application | Ventilation |
|---|---|---|---|
| Valve Material | Stainless Steel | Valve Connection | Flanged |
| Valve Operation | Pneumatic | Valve Certification | BV,DNV,CCS |
| Valve Pressure | ≤0.25Mpa | Valve Seal | Stainless Steel |
| Valve Size | 2-100 Inch | Valve Temperature | 500℃ |
| Valve Type | Butterfly | ||
| Highlight | DN500 Marine Butterfly Valve,Emission Reduction Marine Butterfly Valve,High Efficiency Marine Butterfly Valve |
||
Product Description
DN500 Pneumatic Marine Butterfly Valve BV High Temperature valve High Efficiency Emission Reduction
1. Description:
In the Marine field, FB-D-3 series butterfly valves are mainly used to deal with diesel engine exhaust gas treatment system, through the supporting actuator to adjust or cut off the exhaust gas in the system aisle, so as to achieve Marine nitrogen
oxide emissions to meet the requirements of relevant standards. At present, the main application of waste gas treatment systems are SCR system, ICER system, etc.
In addition, FB-D-3 series butterfly valves are also widely used in the road industry, such as the exhaust gas exhaust pipe
system produced by the boiler in steel smelting, the catalytic combustion equipment pipe system in VOCs (RTO combustion furnace) and the exhaust gas pipe system produced by other combustion equipment.
2. Specification:
| FABIA Valve Parameter List | ||
| Valve type: | Flange type heavy-duty ventilation butterfly valve | |
| Size: | 2inch ～ 100 inch | |
| Material: |
316/316L/304/304L/ Corten |
|
| Connection type: | Flange Connection | |
| Driving model: | Manual/Worm gear drive/Pneumatic/Electric | |
| Pressure rating: | ≤0.25Mpa | |
| Temperature: | -≤500℃ | |
| Model: | FB-D-3.......... | |
3. Features:
- Simple and light in structure
- Suitable for low pressure air or other gas flow, pressure control and high temperature gas
- the main structural components of the valve are welded
- CCS&DNV Type approval certificate, BV French Classification Society Factory approval certificate and product type approval certificate.
- High Efficiency Emission Reduction: Optimized design significantly reduces ship emissions, complying with stringent environmental regulations.
- Durable and Reliable: Made of high-quality materials with a robust design to ensure long-term stable operation, reducing maintenance frequency and costs.
- Smart Control: Equipped with advanced control systems for automated operation, enhancing operational efficiency and safety.
-
Multiple Safety Guarantees: Incorporates multiple layers of safety protection mechanisms to ensure safe and reliable valve operation.
-
Global Standard Certification: Certified by international authorities, ensuring product quality and performance meet global standards.
